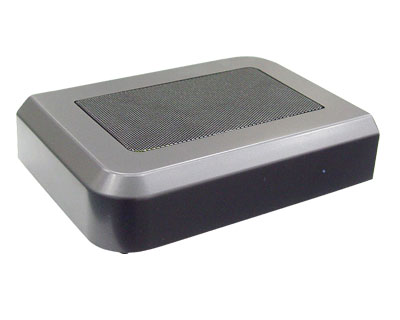

UNO Networking Fanless System 1 Realtek LAN  ![UNO Networking <font color=brown>Fanless </font>System 1 Realtek LAN]()
 UNO System
Imagine how much space you can save by using UNO !
Application : Thin Client / Networking
Specification:
CPU type: VIA Eden(V4) 500Mhz
Front Side Bus: 400 / 533 MHz
MB Chipset: VIA CN700 + VIA VT8237R Plus
Graphics: Integrated with VIA CN700
Shared system memory up to 64MB;
MPEG-2 hardware VLD;
Resolution up to 1600x1200
Memory: 1* DDR II SODIMM 533/400 (max. 1GB)
IDE:Support Compact Flash card type II for ATA interface
Audio: AC-Link for Audio CODEC, AC’97 2.1
LAN: 1* Realtek RLT8100C 10/100 Mbps
IO function: Supports PS/2 Keyboard / Mouse
1 x Line-Out, 1 x Mic-In
USB: 2* USB 2.0(external) & 6 USB 2.0(internal)
SATA: One channel connector
SATA drive transfer rate is capable of up to 150MB/s
Power: On board DC +12V convert to +3.3V/+12V/+5V for system
Dimension: 145 x 102 mm (3.5 inch) (MB)
Dimension: 42H x 180W x 125D mm(Chassis)
Operating Temperature: 0~55°C (with CF card) / 0~40°C (with HDD)
Please upgrade the hard drive to industrial grade for better temperature performance
Operating Humidity: 5~95%, non-condensing
Model Information Update:
Model: 3V700A-1R50E Fanless, VIA Eden 500MHz CPU, 1 Realtek LAN
Model: 3V700A-1R10U Fanless, VIA Eden 1GHz CPU, 1 Realtek LAN "New Version"
|
