| Specifications |

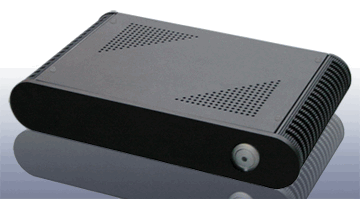

| Chassis |
Fanless cooling system: Support up
to 1.0GHz VIA processor
Dimension: 50mm x 275mm x 172mm ( H x W x D
)
Material: Aluminum + Plastic
Color:
Black |
| Processor
(CPU) |
On-board VIA C3 / Eden 376 PIN EBG
packge
Front side bus 100 / 133 Mhz
VIA Eden Processor @ 533Mhz
VIA C3 Processor @ 800Mhz,
1.0Ghz |
| Main
Chipset |
VIA PLE133
(VT8601A and VT82C686B) |
| System Memory |
Support PC 133/100
SDRAM DIMM
1 x DIMM socket up to 512MB (32MB x N type)
|
| Onboard Video |
64-bit
single cycle 2D/3D graphic engine
Extended screen resolutions up
to 1600x1200x16 bit |
| Onboard LAN |
3x
10/100 Mbps LAN port with Realtek 8100B (8139 family) Fast
Ethernet NIC (Supports Wake-On-LAN & PXE
) |
| Onboard Audio |
VIA VTI612A AC97 2.1
compliant. |
| Front Panel I/O |
|
| Back Panel I/O |
3
x LAN ports
2
x RS232 Serial COM ports
2
x USB 1.1 ports
1
x Parallel port
1
x PS/2 keyboard connector
1
x PS/2 mouse connector
1
x VGA connector
1
x audio Mic-in jack
1
x audio Line-out
jack
1
x 12V DC-IN power jack |
| Storage |
Support 44-pin 2.5" IDE Hard Drive ( HDD)
Support
50-pin Compact Flash disk ( CF )
Support 40-pin / 44-pin
Disk-On-Module ( DOM / iDOC )
Support Disk-On-Chip ( DOC ) |
| BIOS |
Award
BIOS
LAN PXE boot
ROM |
| OS Support |
Linux / BSD / Debian
Windows 9x
Windows
2000
Windows XP Pro
Windows XP Home
Windows XP Embedded
Windows CE
|
| Power Consumption |
30W (Typical)
60W
(Maximum) |
