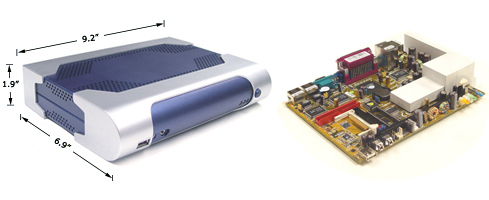

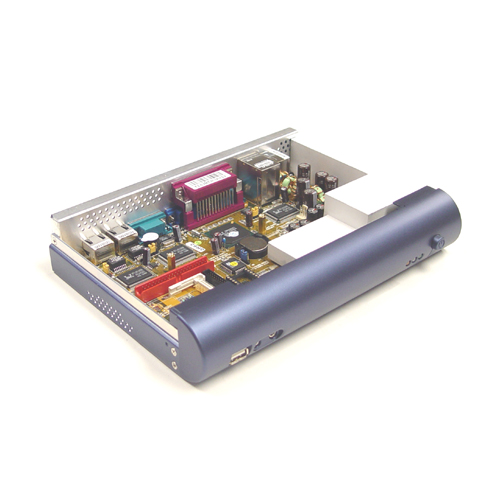

Blue Diamond CV860A / CV860B Series Fanless System 1 LAN  ![Blue Diamond CV860A / CV860B Series <font color=brown>Fanless</font> System 1 LAN]()
     CV860B1R40 CV860B1R4T CV860A1R53 CV860B1R8T CV860A1R80 CV860A1R10
CV860A - 1R10N CV860A1R10N
| Specifications |
| Processor |
On-board VIA C3 / Eden 376 PIN EBG
packge
Front side bus 100 / 133 Mhz
VIA Eden Processor 400Mhz, 533Mhz
VIA C3 Processor 800Mhz,
1.0Ghz |
| Chipset |
VIA PLE133
(VT8601A and VT82C686B) |
| System Memory |
Support PC 133/100
SDRAM DIMM
1 x DIMM socket up to 512MB (32MB x N type)
|
| VGA |
64-bit
single cycle 2D/3D graphic engine
Extended screen resolutions up
to 1600x1200x16 bit
S-Video
& RCA TV-out (for
CV860B-1R4T/1R8T): Support NTSC / PAL TV systems; Automatic detection of TV
presence |
| Onboard LAN |
1x
10/100 Mbps LAN port with Realtek 8100B (8139 family) Fast
Ethernet NIC (Supports Wake-On-LAN & PXE
) |
| Onboard Audio |
VIA VTI612A AC97 2.1
compliant. |
| Front Panel |
Power
button
1 x USB 1.1
port
1 x audio
Mic-in jack
1 x audio
Line-out jack |

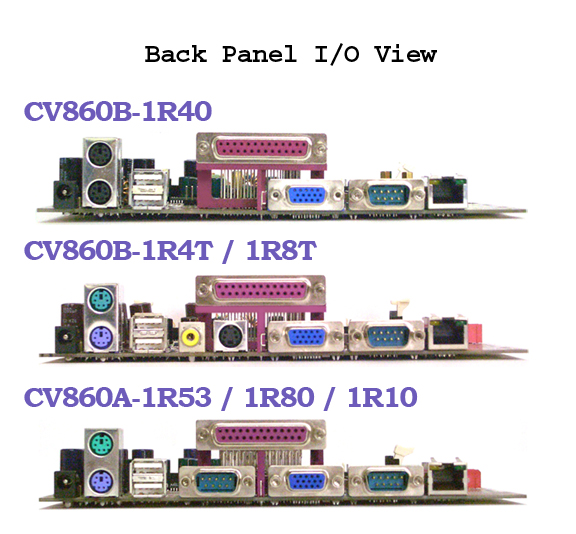

| Back Panel I/O |
1 x 12V DC-IN power jack 1 x PS/2 keyboard connector 1 x
PS/2 mouse connector 1 x VGA connector
1 x S-video & 1 x RCA TV-out (CV860B-1R4T
/ 1R8T)
1 x RS232 Serial COM port (CV860B)
2 x RS232 Serial COM ports
(CV860A)
1 x Parallel port
2 x USB 1.1 ports
1x
LAN port |
| Storage |
Support 44-pin 2.5" IDE HDD
Support
40-pin / 44-pin DOM ( iDOC )
Support DOC ( Disk-On-Chip )

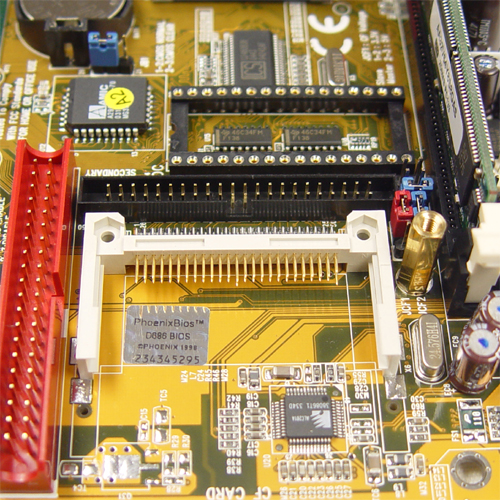

Support 50-pin Compact Flash disk |
| BIOS |
Award
BIOS
LAN PXE boot
ROM |
| OS Support |
Linux
Windows 9x
Windows 2000
Windows
XP
Windows XP Embedded
Windows CE
|
| Power Consumption |
Less than
60W | |
| Light
Models |
| Model |
CPU |
Video |
CV860B - 1R40
( Fanless ) |
VIA Eden 400Mhz |
VGA |
CV860B - 1R4T
( Fanless ) |
VIA Eden
400Mhz |
VGA, S-Video & RCA TV-OUT |
CV860A - 1R53
( Fanless ) |
VIA Eden 533Mhz |
VGA |
CV860B - 1R8T
( With Fan
) |
VIA C3 800Mhz |
VGA, S-Video & RCA TV-OUT |
CV860A - 1R80
( With Fan
) |
VIA C3
800Mhz |
VGA |
|
CV860A - 1R10
( With Fan
) |
VIA C3
1.0Ghz |
VGA | |
Model Information Update:
Model: CV860A-4R53 fanless, 533MHz CPU, 4 Realtek LAN without Printer Port - Special Edition
Model: CV700A-3R10 fanless, VIA C7 1GHZ CPU, 3 Realtek LAN "New Version"
|
