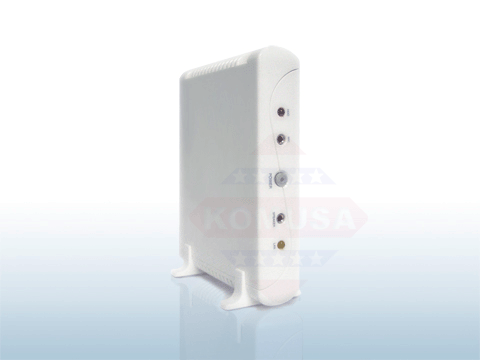

White Diamond V1.0 - Thin Client - ES466A series Fanless System  ![White Diamond V1.0 - Thin Client - ES466A series <font color=brown> Fanless </font> System]()

ES466A
The ES466A series Thin Client is an intelligent, cost-effective network appliance. It is integrated with a GX2-466 333Mhz processor optimized for low-power, low temperature, high-performance, and competitive-price. The ES466A is a fully integrated Windows/Linux base solution to server and client based computing. The ES466A Thin Clients use industry-standard components for improved overall reliability. With ES466A series Thin Clients, you can upgrade users quickly and inexpensively by updating application software hosted on servers. The ES466A is an attractive approach for cutting hardware costs, reduced network bandwidth requirements, and the total cost of ownership. The ES466A thin client can be used in a broad range of embedded devices, such as Thin Client Computing, Education System Terminal, and Information Appliance.
| Specifications |
|
Processor
and System Chipset: |
?AMD GX2-466 333Mhz
processor
?Front side bus 33/66
Mhz
?AMD CS5535
chipset |
|
Memory: |
?128MB DDR266 RAM with 256MB
option |
| Graphic: |
?Optimized shared
memory architecture with maximum share 16MB
?Support display
resolutions up to 1600x1200x16 bit
|
| Sound: |
?AC97 2.3
compliant
?ALC203 Audio
codec

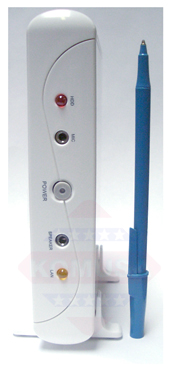

?One Line-out and one MIC-in on front
panel |
| LAN and USB: |

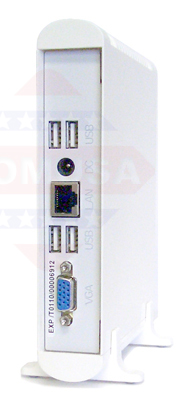

?4 x USB 1.1 ports
?1 x RealTek RTL8100B 10/100
Mbps
?LAN LED on front
panel |
|
Storage: |
?Diskless with non-volatile storage via
Flash-IDE-Chip |
|
Size: |
?Small board form factor - 4.72"
x 5.31" (120mm x

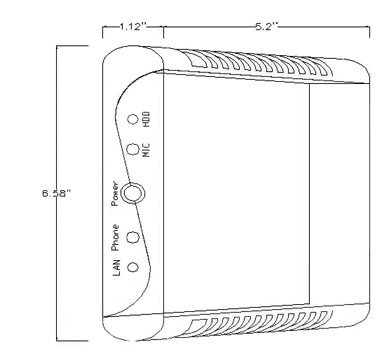

135mm) ?Case Dimension - 1.12"W x 6.58"H x
5.2"D (28mm W x 167mm H x 132mm
D) |
| Power: |
?Low-power consumption ?5W, 1W standby

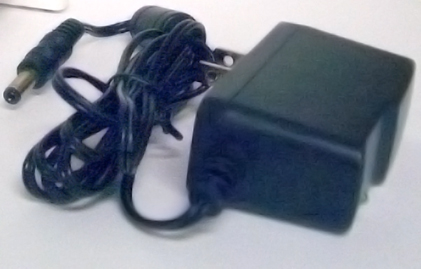

?#38;nbsp; fanless ?12V DC / 1A with external power adapter
(11V~13V) |
| Operating Temperature: |
?0 ~ 60 oC
/ 32 ~ 140 oF |
| System Supported: |
?Microsoft?Windows?CE
?Microsoft?
Windows?XP Embedded
?Linux
?Support multiple
protocols, plug-ins and local application (Web browser, multimedia
player)
?#38;nbsp;Microsoft RDP
?Citrix
ICA |
|
The replacement model is UNO: 1 Realtek LAN, 1.0 GHz, VIA Eden processor
|
