Blue Diamond CV860A-4R53 Embedded x86 Platforms with LIGHT Chassis - 4x LAN   ![Blue Diamond <font color=Green> CV860A-4R53 </font> Embedded x86 Platforms with LIGHT Chassis - <font color=red> 4x LAN </font>]()

CV860B1R40 CV860B1R4T CV860A1R53 CV860B1R8T CV860A1R80 CV860A1R10
CV860A - 1R10N CV860A1R10N
| Specifications |
| Chassis |
Fanless cooling system: Support up to 533
MHz VIA processor

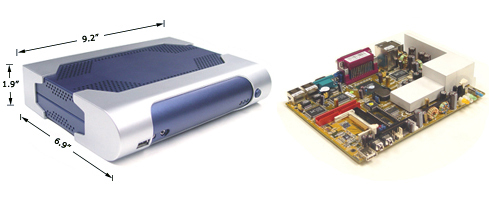

Dimension: 48.5mm x 234mm x 175mm ( H x W x D
)
Material: Aluminum + Plastic
Color:
Blue / Silver |
| Processor
(CPU) |
On-board VIA C3 / Eden 376 PIN EBG
packge
Front side bus 100 / 133 Mhz
VIA Eden Processor @ 533Mhz
VIA C3 Processor @ 800Mhz,
1.0Ghz |
| Main
Chipset |
VIA PLE133
(VT8601A and VT82C686B) |
| System Memory |
Support PC 133/100
SDRAM DIMM
1 x DIMM socket up to 512MB (32MB x N type)
|
| Onboard Video |
64-bit
single cycle 2D/3D graphic engine
Extended screen resolutions up
to 1600x1200x16 bit |
| Onboard LAN |
3x
10/100 Mbps LAN port with Realtek 8100B (8139 family) Fast
Ethernet NIC (Supports Wake-On-LAN & PXE
) |
| Onboard Audio |
VIA VTI612A AC97 2.1
compliant. |
| Front Panel I/O |
Power
button
Power / HDD / LAN
LED
1 x USB 1.1
port
1 x audio
Mic-in jack
1 x audio
Line-out jack |

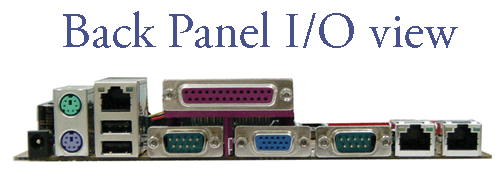

| Back Panel I/O |
3
x LAN ports
2
x RS232 Serial COM ports
2
x USB 1.1 ports
1
x Parallel port
1
x PS/2 keyboard connector
1
x PS/2 mouse connector
1
x VGA connector
1
x 12V DC-IN power jack |
| Storage |
Support 44-pin 2.5" IDE Hard Drive ( HDD)
Support
50-pin Compact Flash disk ( CF )
Support 40-pin / 44-pin
Disk-On-Module ( DOM / iDOC )
Support Disk-On-Chip ( DOC ) |
| BIOS |
Award
BIOS
LAN PXE boot
ROM |
| OS Support |
Linux / BSD / Debian
Windows 9x
Windows
2000
Windows XP Pro
Windows XP Home
Windows XP Embedded
Windows CE
|
| Power Consumption |
30W (Typical)
60W
(Maximum) | |
Model Information Update:
Model: CV860A-4R53 fanless, 533MHz CPU, 4 LAN without Printer Port - Special Edition
|
