Black Diamond CV700A-3R50E Embedded x86 Platforms CPU-500MHz with NEO Chassis - 3x LAN

CV860B1R40 CV860B1R4T CV860A1R53 CV860B1R8T CV860A1R80 CV860A1R10 CV860A - 1R10N CV860A1R10N

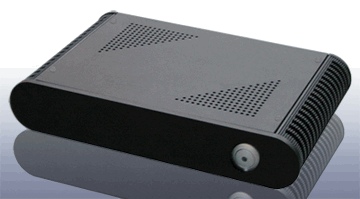

Chassis Fanless cooling system:

Dimension: 50mm x 275mm x 172mm ( H x W x D )

Material: Aluminum (Heavy Duty)

Color: Black

Motherboard Features:

VIA Eden C7 , 3 Intel LAN , SATA , Mini PCI

Motherboard Specifications:

CPU type: . VIA Eden(V4)/ C7 nano BGA2 400 pin, L1/L2 128K on die

Front Side Bus: 400/533 MHz

MB Chipset : VIA CN700 + VIA VT8237R Plus

Graphics :

. Integrated with VIA CN700

. Shared system memory up to 64MB

. MPEG-2 hardware VLD

. Resolution up to 1600 x 1200

TV-Out (Option) : NTSC(M, J) or PAL(B,D,G,H,I,M,N,Nc)

Memory : 1 x DDR II SDRAM 533/400 (max. 1GB)

IDE :

. Ultra DMA-133/100/66 transfer protocols

. 1 x 40 pin 2.54mm, 1 x 44 pin 2.0mm

. Support Compact Flash card type II for ATA interface

Audio : AC-Link for Audio CODEC, AC’97 2.1

LAN : 3 x Realtek 10/100 Mbps (optional Realtek/Intel Gigabit)

IO function : 2 x RS232

. Supports Hardware Monitor Controller

. Supports Infrared SIR and FIR

. Supports one printer port

USB : 6 x USB 2.0

SATA One channel connector

SATA drive transfer rate is capable of up to 150MB/s

Expand interface 1 x Mini PCI for only PCI rev: 2.2 interface

Power : On board power DC +12V±5% convert into system +3.3V/+12V/+5V

Dimension : 200 x 150 mm

Operation Temperature : 0 ~ 60°C

Operation Humidity : 5~95% @ 60°C, non-condensing

Ordering Information

. CV700A-3R50E : 3 LAN, 500MHz, VIA Eden(V4) processor

If you have any questions, please feel free to call (909)740-9788

BD-3005List Price: $409.00On Sale: $359.00
Memory upgrade Option:
CF Card upgrade Option:
DOM (Disk-On-Module aka iDOC):
2.5 Hard Drive upgrade Option:
Wireless LAN Option:
56K Dial Up Modem Option:
ADSL, ISDN Modem are available, upon request:
OS Software Option w/ Free Installation:
