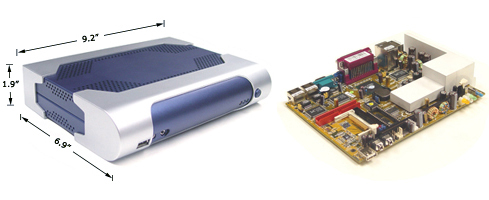

Blue Diamond CV700A Series <font color=brown>Fanless</font> System 3 Realtek LAN

Motherboard Features: VIA Eden / C7 , 3 LAN , SATA , Mini PCI

Specifications:

CPU type: VIA V4 bus processor Eden / ULV

or C7 Nano-BGA2 400 pin L1 128 KB, L2 128 KB on die

Front Side Bus: 400/533 MHz

MB Chipset: VIA CN700 + VT8237R Plus

BIOS: Award BIOS

Graphics: Integrated with VIA CN700 Shared system memory up to 64MB

Memory: 1 x DDRII SDRAM DIMM slot (max. 1GB)

IDE: Ultra DMA-133 / 100 / 66, 1 x 40 pin 2.54mm, 1 x 44 pin 2.0mm CF Card Type II for ATA interface

SATA: 1 x SATA port

Audio: AC-Link for Audio CODEC, ACE7 2.1 Support Line-out / Mic-in / Line-in

LAN: 3 x Realtek 10 / 100 Mbps ( optional Realtek / Intel GbE ) Intel 82541PI or Realtek RLT8100C / RLT8110SC LAN Chip

IO function: 2 x RS232 Supports Infrared SIR & FIR Supports one printer port

USB: 7 x USB 2.0 (3 external + 4 internal)

TV-Out (Option): Supports all NTSC & PAL formats. Resolution : 1024 x 768

WDT (option): Hardware Watch Dog Timer, 0~255 sec programmable

Expansion interface: 1 x Mini PCI socket

Power: On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system

Dimension: 200 x 150 mm

Operation Temp.: 0 ~ 60°C

Operation Humidity: 5~95% @ 60°C, non-condensing

Ordering Information:

. CV700A-3R50E : 3 Realtek LAN, 500 MHz, VIA V4 Eden processor

. CV700A-3R10U : 3 Realtek LAN, 1 GHz, VIA V4 Eden ULV processor

The replacement model is Black Diamond LEO-3V700DCR15: 3 Realtek LAN, 1.5 GHz, VIA V4 C7 processor, 1x RS232
