8.4” SmartTouch-800B Fanless LCD Touch Screen Panel PC - Water Resistant Front Panel  ![8.4” <font color=orange> SmartTouch-800B </font>Fanless LCD Touch Screen Panel PC - Water Resistant Front Panel]()

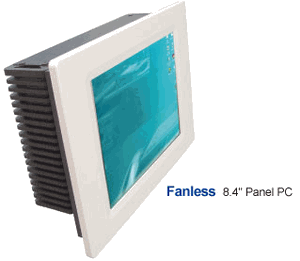

SmartTouch-800B Fanless Panel PC
provides Water Proof / Touch Screen / Fanless Function.
It can be easily mounted with Wall / Information Mech. / Ticket Mech. ...ect .
Open-frame mechanical design is available upon customer's request.
Specification:
Panel & Chassis
• Display size: 8.4"
• Resolution: 800X480
• Brightness(cd/m2): 220
• Contrast Ratio: 350:1
• Number of Colors: 262k
• Touch Screen: 4 wires resistance type
• Mounting Spec.: VESA75
• Panel frame water proof: IP65 Front Panel
• Dimension (panel)(HxWxD): 9(H)x270(W)x194(D) mm
• Dimension (case)(HxWxD): 74(H)x256(W)x172(D) mm
• Material: SECC
• Weight:3.2Kg "7.05 Lbs" (inc. MB)
Main Board: 800B , Fanless
• CPU:VIA Eden ULV 1.0GHz
• Max Memory: up to 1GB DDRII (SODIMMx1)
• Storage: CF
• I/O standard: 1xRS232 , 1x LAN, 2xUSB, 1x Line-out, 1x mic-in, 1xVGA
• Expansion: mini PCI
• Power supply: Standard +12V
• Operating Temperature: 0- 55°C
|
