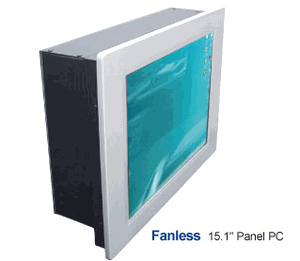

15.1 <font color=green> SmartTouch-5000A </font>Fanless LCD Touch Screen Panel PC

SmartTouch-5000A Fanless Panel PC provides Water Proof / Touch Screen / Fanless Function. It can be easily mounted with Wall / Information Mech. / Ticket Mech. ...ect . Open-frame mechanical design is available upon customer's request.

Specification:

Panel & Chassis

� Display size: 15.1"

� Resolution: 1024X768

� Brightness(cd/m2): 350

� Contrast Ratio: 400:1

� Number of Colors: 262k

� Touch Screen: 8 wires resistance type

� Mounting Spec.: VESA75/ 100

� Panel frame water proof: IP65 Front Panel

� Dimension (panel)(HxWxD): 9(H)x410(W)x3100(D) mm

� Dimension (case)(HxWxD): 102(H)x386(W)x258(D) mm

� Material: SECC

� Weight:10.6 Kg " 23.35 Lbs" (inc. MB)

Main Board: 5000A, Fanless

� CPU: VIA Eden 500MHz

� Max Memory: up to 1GB DDRII (SODIMMx1)

� Storage: CF

� I/O standard: 1xRS232 , 1x LAN, 2xUSB, 1x Line-out, 1x mic-in, 1xVGA

� Expansion: mini PCI

� Power supply: Standard +12V

� Operating Temperature: 0- 55°C
