12.1” SmartTouch-2000B Fanless LCD Touch Screen Panel PC - Water Resistant Front Panel  ![12.1” <font color=orange> SmartTouch-2000B </font>Fanless LCD Touch Screen Panel PC - Water Resistant Front Panel]()

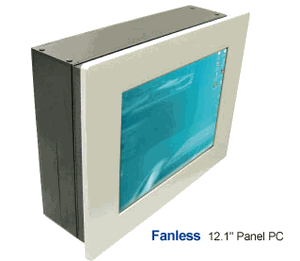

SmartTouch-2000B Fanless Panel PC
provides Water Proof / Touch Screen / Fanless Function.
It can be easily mounted with Wall / Information Mech. / Ticket Mech. ...ect .
Open-frame mechanical design is available upon customer's request.
Specification:
Panel & Chassis
• Display size: 12.1"
• Resolution: 1024X768
• Brightness(cd/m2): 185
• Contrast Ratio: 400:1
• Number of Colors: 262k
• Touch Screen: 8 wires resistance type
• Mounting Spec.: VESA75/ 100
• Panel frame water proof: IP65 Front Panel
• Dimension (panel)(HxWxD): 9(H)x360(W)x280(D) mm
• Dimension (case)(HxWxD): 101(H)x335(W)x258(D) mm
• Material: SECC
• Weight:9.0 Kg " 19.82 Lbs" (inc. MB)
Main Board: 2000B, Fanless
• CPU:VIA Eden ULV 1.0GHz
• Max Memory: up to 1GB DDRII (SODIMMx1)
• Storage: CF
• I/O standard: 1xRS232 , 1x LAN, 2xUSB, 1x Line-out, 1x mic-in, 1xVGA
• Expansion: mini PCI
• Power supply: Standard +12V
• Operating Temperature: 0- 55°C
|
