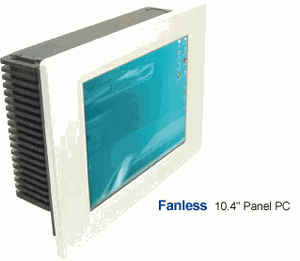

10.4” <font color=green> SmartTouch-1000A </font>Fanless LCD Touch Screen Panel PC

SmartTouch-1000A Fanless Panel PC provides Water Proof / Touch Screen / Fanless Function. It can be easily mounted with Wall / Information Mech. / Ticket Mech. ...ect . Open-frame mechanical design is available upon customer's request.

Specification:

Panel & Chassis

• Display size: 10.4"

• Resolution: 800X480

• Brightness(cd/m2): 220

• Contrast Ratio: 400:1

• Number of Colors: 262k

• Touch Screen: 8 wires resistance type

• Mounting Spec.: VESA75/ 100

• Panel frame water proof: IP65 Front Panel

• Dimension (panel)(HxWxD): 9(H)x310(W)x230(D) mm

• Dimension (case)(HxWxD): 77(H)x280(W)x200(D) mm

• Material: SECC

• Weight:7.0 Kg " 15.42 Lbs" (inc. MB)

Main Board: 1000A , Fanless

• CPU type: VIA Eden(V4) ULV 1 GHz nano BGA2 400 pin, L1/L2 128K on die

• Front Side Bus: 400/533 MHz

• MB Chipset: VIA CN700 + VIA VT8237R Plus

• Graphics:

Integrated with VIA CN700,

Shared system memory up to 64MB,MPEG-2 hardware VLD

• LVDS: Supports data format of 24 bits/48 bits

• Memory: 1* DDR II SDRAM 533/400 (max. 1GB)

• IDE:

Ultra DMA-133/100/66 transfer protocols,

1x 40 pin 2.54mm,

1x44 pin 2.0mm,

Support Compact Flash card type II for ATA interface

• Audio: AC-Link for Audio CODEC, AC’97 2.1

• LAN: 1* Realtek RLT8100C 10/100 Mbps

• IO function:

4 x RS232, 1xRS232/422/485 pin header,

Supports Hardware Monitor Controller

Supports IrDA 1.0/ASKIR protocol

Supports PS2 keyboard and mouse

• USB: 2* USB 2.0(external) & 5 USB 2.0(internal)

• Touch Screen:

USB interface Touch screen controller

Supported 4-, 5-, 8- wire Analog Resistive touch screen.

Resister range from 200 to 1000 Ohm

USB 1.1full speed sample rate (max. 300 point/s)

• Expansion interface: 1* Mini PCI for only PCI rev: 2.2 interface

• SATA:

One channel connector

SATA drive transfer rate is capable up to 150MB/s

• DIO & WDT:

Hardware digital Input & Output, 8xDI / 8xDO

Hardware Watch Dog Timer, 0~255 sec programmable

• Power: On board DC +12V convert to +3.3V/+12V/+5V for system

• Dimension: 200*150 mm(MB)
